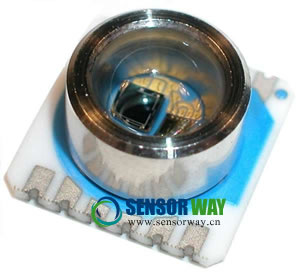

- MS5535-30C壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/10/16
Applications: Mobile water depth measurement systems, Diving computers and diving watches
Description: The MS5535-30C is a high-pressure version of MS5535C pressure sensor module. It contains a precision piezoresistive pressure sensor and an ADC-Interface IC. It uses an antimagnetic polished stainless ring for sealing O-ring. It provides a 16 Bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535- 30C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.
Features:
•Resolution 3.0 mBar
•Supply voltage 2.2V to 3.6V
•Low supply current < 5uA
•Standy current < 0.1µA
•-40°C to +125°C operation temperature
•16 Bit ADC resolution pressure measurement and control systems
典型應用: 手持水深測量系統，潛水設備和潛水表
產品描述:
MS5535-30C是高壓版本的MS5535C，由高精度的硅壓阻傳感元件和模數轉換IC組成。防磁拋光金屬環與O型圈配合用于密封。傳感器提供16位的壓力和溫度數字輸出，同時還提供6個可讀系數用于高精度的軟件校正。MS5535-30C的主要特點是低電壓、低功耗，以及自動待機（ON/OFF）功能，通過3線接口和外部微控器通訊。
特點:
分辨率：3.0 mBar
供電電壓：2.2V ~ 3.6V
低功耗：< 5uA
待機功耗：< 0.1µA
工作溫度：-40°C ~ +125°C
16位ADC分辨率
