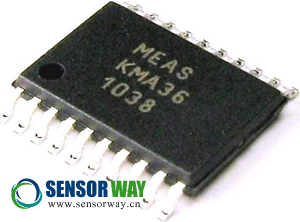

KMA36數字磁阻傳感器中英文產品介紹
來源:賽斯維傳感器網 發表于 2014/6/20



  Applications: Industrial environment, Harsh environment, Handling machine, Machine tools, Robotics, Potentiometer, Motor motion control

  Industries: Engine and Vehicle, General Industry

  Description: The KMA36 is a universal magnetic encoder for precise rotational or linear measurement. These digital position sensors feature a system-on-chip technology that combines a magnetoresistive element along with analog to digital converter and signal processing in a standard small package. By using Anisotropic Magneto Resistive (AMR) technology, the KMA36 is able to determine contactlessly the magnetic angle of an external magnet over 360°, as well as the incremental position on a magnetic pole strip with 5 mm pole length. Its sleep and low power mode as well as automatic wake-up over I2C – make the KMA36 ideal for many battery applications. Position data can be transmitted using a PWM or digital two-wire (SDA, SCL) communication bus. Using the programmable parameters of this digital position sensor, the user can have access to a wide range of configuration to ensure the maximum of freedom and functionalities. Used as both a linear position sensor or a rotary position sensor, these KMA36 magnetoresistive sensors designed by MEAS (Measurement Specialties) are insensitive to magnetic drift due to mechanical tolerances, changes in temperature or thermal stress. The maintenance-free operation and high bandwidth of this universal magnetic encoder and Position Sensor makes it a good choice for dynamic applications in harsh environments. Measurement Specialties designed the universal magnetic encoder KMA36 to replace the less precise Hall-Effect position sensors that are often susceptible to external noise. As a robust Position Sensors the Measurement Specialties KMA36 can also replace more fragile optical encoders whose bearings are subject to failure.

  Features:

  Contactless Absolute 360° (180°) angle measurement
  Incremental mode
  Linear mode
  Standard I2C Interface (100 kHz)
  Programmable resolution up to 13 bit (0.04 degree)

  典型應用: 工業環境,惡劣環境,機床,機器人,電位計,電機控制

  行業: 發動機和機動車輛, 工業控制

  產品描述: KMA36是一款精確測量轉角或直線位移的通用磁性編碼器。這款小型芯片包括一個磁阻元件,模數轉換器和信號處理系統。利用成熟的AMR(各向異性磁阻)技術,KMA36可以非接觸測量360°角位移和5mm增量位移。傳感器的睡眠/低功耗模式和I2C喚醒功能使其可以應用于眾多電池供電設備。數據可以通過PWM或兩線(SDA, SCL)通訊總線傳輸。用戶使用可調參數配置傳感器,將傳感器功能最大化。

  特點:

  非接觸式絕對角度測量(360°/180°)
  增量模式
  線性模式
  標準I2C接口(100kHz)
  高達13位的可編程分辨率(0.04度)

  KMA36傳感器更多技術參數及規格書下載請瀏覽:http://www.nruycgko.cn/sensors/686.html

  北京賽斯維測控技術有限公司產品咨詢熱線:010-84775646,84775648。



     如果本文收錄的圖片文字侵犯了您的權益,請及時與我們聯系,我們將在24內核實刪除,謝謝!
